General Starlight CTS-230CG Thermal Clip On
General Starlight CTS-230CG Thermal Clip On

General Starlight CTS-230CG Thermal Clip On

Model: CTS-230CG

The CTS system can add thermal capability to any daytime sight with a long range 50mm lens.

Session->read('Store.Store.currency_id'))] : ($option['price'] === 0 ? 'free' : $option['price'][strtolower($this->Session->read('Store.Store.currency_id'))])), 'type' => 'checkbox', 'hiddenField' => false ) ($option['price'][strtolower($this->Session->read('Store.Store.currency_id'))] === 0 ? "Add a FREE {$option['Product']['name']} " : 'NULL'); ?>//"Add a " . . $option['Product']['name'] . ' for ' . ((!isset($option['price']) ? $option['Product']['price_' . strtolower($this->Session->read('Store.Store.currency_id'))] : (: $option['price'][strtolower($this->Session->read('Store.Store.currency_id'))])); ?> -->

$15,273.00 CAD

2 to 3 weeks



Questions? Ask our Expert

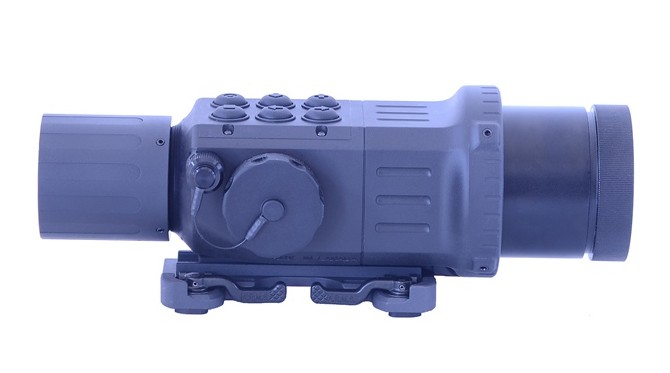

General Starlight CTS-230 Thermal Clip-On System

GSCI's clip-on thermal scopes CTS-230 units are designed for short to medium range engagements. Utilizing the quick detach weapon mount, the CTS-200 easily attaches and detaches from standard M1913 Picatinny rails in front of day scopes. This gives the operator the ability to deploy it on multiple weapon platforms without the need to dedicate a thermal scope to a specific weapon.

This model uses a 50mm lens for extended reach.

CTS-230 scopes have built-in digital collimator which allows the easy "pairing" with the host day scope.

The CTS-230 Clip-On Thermal Imaging Sights offer weapon sight functionality at a reasonable price compared to other systems on the market. Its multiple weapon use applications as well as standalone and handheld capability make it a truly unique device.

The CTS-230 scopes also feature the ability to be connected to an external video monitor, recorder or Head Mounted Display.

Protected by 7-Year Manufacturer's Warranty from GSCI!

CTS-230 Thermal Clip Specifications

Spectral Response 8-12um
Focal Plane Array Resolution 384x288, 25um
Thermal Sensitivity 50mK
Refresh Rate 60hz
Lens 50mm
Optical Zoom 2x
Weight 700g without batteries
Dimensions 210mmx90mmx65mm
Diopter Adjustment +2/-6
Battery two lithium AA packs
Standard Battery Life 8 hours
Display Resolution 800x600
Start Up Time 2-3 seconds
Polarity White Hot & Black Hot
Collimator Electronic and Manual

This product can be shipped almost anywhere! It is tailor-made for Canadians!

This product does not have any special export requirements and can be freely transported across most borders. But some designated countries and groups may not be eligible:
