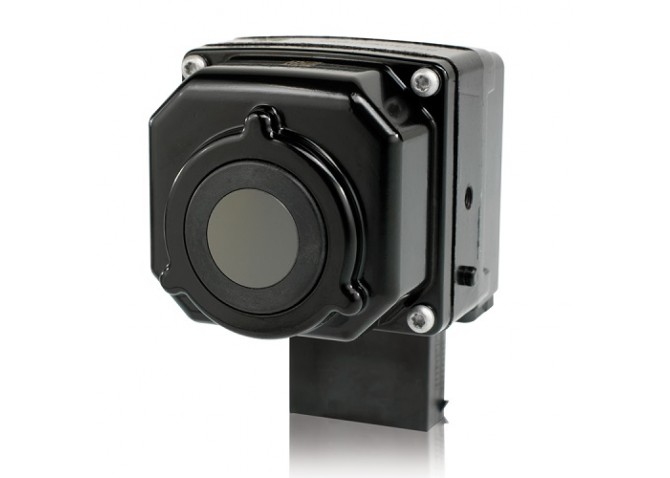

FLIR PathFindIR II 7.5Hz PD/AD Vehicle Thermal Imaging Camera, No Logo Screen
Downloads:
datasheet
FLIR PathFindIR II 7.5Hz PD/AD Vehicle Thermal Imaging Camera, No Logo Screen

FLIR PathFindIR II 7.5Hz PD/AD Vehicle Thermal Imaging Camera, No Logo Screen

Model: 334-0055-00

With FLIR's new sophisticated software, Animals and Pedestrians are now detectable with a 30% improved range with this 7.5Hz Vehicle Night Vision Camera. No splash screen and logo upon startup.

Session->read('Store.Store.currency_id'))] : ($option['price'] === 0 ? 'free' : $option['price'][strtolower($this->Session->read('Store.Store.currency_id'))])), 'type' => 'checkbox', 'hiddenField' => false ) ($option['price'][strtolower($this->Session->read('Store.Store.currency_id'))] === 0 ? "Add a FREE {$option['Product']['name']} " : 'NULL'); ?>//"Add a " . . $option['Product']['name'] . ' for ' . ((!isset($option['price']) ? $option['Product']['price_' . strtolower($this->Session->read('Store.Store.currency_id'))] : (: $option['price'][strtolower($this->Session->read('Store.Store.currency_id'))])); ?> -->

$3,504.00 CAD

2 to 3 weeks



Questions? Ask our Expert


FLIR PathFindIR 334-0055-00 Offers

Features

  • Pedestrian and Animal Detection with this version
  • 7.5Hz
  • Rugged design assures operability even in the toughest environments
  • 24° FOV lens balances longer detection range with viewing of either side of road
  • Automatically activates when temperature reaches 4°C providing use in cold weather conditions
  • IP69 rated, hermetically sealed providing extra insurance in all weather conditions
  • 2.6" × 3.4" × 3.2" allows integration into many tight spaces or OEM systems
  • 320×240 resolution provides crisp clean images and greater viewing distances
  • NO Logo and Splash Screen Upon Startup

Applications

Ideal for the following applications: Automotive, Trucking, Law Enforcement, Fire Rescue, Recreational Vehicles, Maritime, Mining.

FLIR PathFindIR II Specifications

Sensor Type   320 x 240 Uncooled Microbolometer
Field-of-View  24° (h) x 18° (v)
Spectral Band  8-14 microns (LWIR)
Sealed Design  IP69 rated, hermetically sealed providing extra insurance in all weather conditions
Outputs  NTSC
Power Requirements  12 VDC
Power Consumption  2 W (6 W w/heater on)
1.8 A max. system current
Spectral Band  8-14 microns (LWIR)
Operating Temperature  -40°C to 80°C
Weather Resistance (Camera)  Hermetically Sealed, Automotive Qualified
Weather Resistance (ECU)  Non-Hermetic; Passenger Compartment mount required
Window  High-Impact Resistant Optic w/ Built-in Automatic Heating Element
Camera Dimensions  2.6" × 3.4" × 3.2" (60 × 86 × 82 mm )
Camera Weight  0.6 lb (300 g)
ECU Dimensions 5.8" × 4.3" × 0.9" (148 × 110 × 24 mm )
ECU Weight  0.7 lb (350 g)
Click here for complete specifications on the FLIR 334-0055-00

Accessories

Click on a category to view a selection of compatible accessories with the FLIR PathFindIR II 7.5Hz PD/AD Vehicle Thermal Imaging Camera, No Logo Screen.

FLIR PathFindIR II Installation Kit 421-0053-00 82814
Accessories needed to connect and mount the monitor to the camera for the PathFindIR II.
$1,140.00 CAD

Learn More
FLIR PathFindIR II Wiring Harness 308-0240-00 82819
Wiring Harness and 20 foot Power/Video.
$119.00 CAD

Learn More
FLIR Safety Vision 7" LCD Monitor Kit 4105734 11454
LCD Monitor Kit. Includes a Sun Shield and Mounting Bracket.
$912.00 CAD

Learn More
FLIR PathFindIR II Mounting Bracket and Arm 261-2319-00 82815
Mount your PathFindIR with this Bracket and Arm.
$60.00 CAD

Learn More
FLIR PathFIndIR II ECU Mounting Bracket 261-2270-00 82816
Mounting Bracket for ECU.
$60.00 CAD

Learn More
FLIR Replaceable Window Kit 421-0055-00 82820
Window Kit.
$405.00 CAD

Learn More
FLIR Safety Vision LCD Cable 4105735 11455
BNC to S-Video, 9 foot.
$68.00 CAD

Learn More
