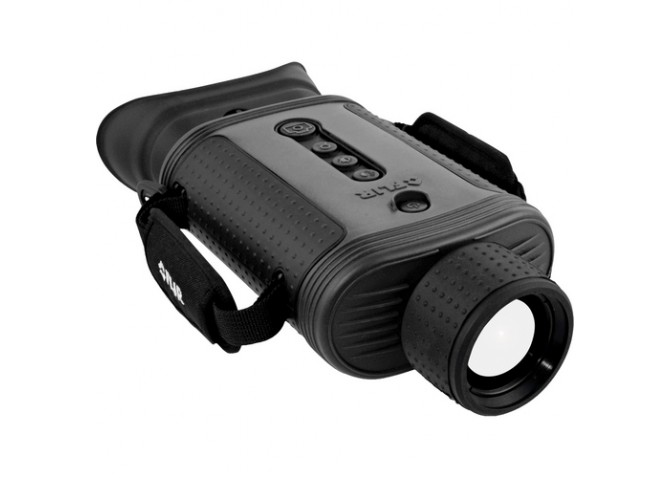

Model: BHS-XR NTSC 30Hz
Uses a 640x480 detector for highest resolution. Requires a 35mm, 60mm, or 100mm lens.
The BHS X and XR series images are long range Bi-ocular systems. Unlike daytime binoculars, these units have only one thermal detector, but two eyepieces for comfort during extended viewing. Combined with a 30hz core and with 3 sizes of interchangeable lenses, the BHS is a top of the line long range range thermal system. Please note that this is just the imager itself, and that at least one lens is required.
The BHS sees use by police forces and tactical teams across the country, and is also popular with search and rescue workers. Long range sheep and elk hunters have used the BHS alongside spotting scopes for distant observation.
The BHS binouclar was made for Law Enforcement units who needed the maximum range while observing over extended periods of time. The 640x420 detecter in the BHS-XR Pro gives it the furthest reach of any night vision unit we sell. It is able to successfully scan out past 2 kilometers and highlight heat signatures of interest. Using both eyes results in a much more comfortable view, and tripod mounting eliminates shake.
The capabilities of thermal technology are a natural fit for law enforcement. The ability to observe at distance in darkness with zero emissions by the user is an undeniable advantage. But beyond that, users are able to see recently used vehicles, trace heat signatures, and screen through dust or smoke. These units can also be converted for team analysis with a video out and monitor. Rather than a single operator directly at the device, you could have several people examning the same thermal image remotely.
Extremely affordable
FLIR Systems is active in many different markets and produces more thermal imaging cameras than any other manufacturer. Thanks to economies of scale FLIR Systems is able to market this full featured handheld thermal imaging cameras at an extremely affordable price compared to other systems on the market. Price is no longer an issue to bring the benefits of thermal imaging cameras to every law enforcement officer.
Extended Range
The BHS-X is equipped with an uncooled vanadium oxide detector. This provides excellent long range viewing with sharp 320 x 240 native resolution in the viewfinder and a 2x digital e-zoom step to 160 x 120 resolution.
Choice of lenses
The BHS-X can be ordered with different lenses. Longer lenses have a narrower field of view and allow you to see targets farther away. Lenses are interchangeable. The specific lens(es) required for the application need to be specified at time of order.
Digital zoom
The BHS-X comes with a 2x digital zoom.
Portable and rugged
All FLIR BHS-Series are compact and extremely light systems. They are IP67 rated and operate between -20°C and +60°C. Ergonomic and easy-to-use, the BHS-Series are fully controlled with just 5 buttons on top of the unit.
In operation, the BHS-Series are totally silent units. Eyebrow style light shield eye-pieces allows the operator to remain fully covert, in total darkness.
Image storage
Both versions of the BHS-Series allow to store thermal images in JPEG format on a removable SD memory card. Images can be used as evidence. Just press a button and start recording thermal video on a removable SD card.
Long battery life
The battery compartment hides 4 rechargeable AA NiMH batteries. Good for 4 hours continuous operation. The BHS-Series can also run on standard commercial off the shelf non-rechargeable Alkaline or Lithium Ion AA-batteries.
Hot shoe
The BHS-Series come standard with a "hot shoe" which can easily be attached to the camera. It allows to charge the camera and connect the camera to an external video monitor while the camera is mounted on a tripod.
| Imaging Performance | |
| Detector Size | 320 x 240 |
| Digital E-Zoom | 2x |
| Detector Type | Uncooled VOx Microbolormeter |
| Spectral Range | 7.5 - 13.5 um |
| Thermal Sensitivity | <50 mK @f/1.0 |
| Start-up from Stand-by | <1.5 Seconds |
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| SD Card Slot | Supports up to 16GB SDHC Card |
| Focus | Manual |
| Image Presentation | |
| Built-in Display | Color VGA LCD Display |
| Video Output | 30 Hz NTSC or PAL composite video; RCA jack |
| File Storage / Data Transfer | |
| Still Image / Video Format | JPEG / AVI (320 x 240 resolution) |
| Video Format | 320 x 240 NTSC or PAL |
| Still Image Storage | SD or SDHC Card |
| Video Storage | AVI Format; Approx. 8 seconds/MB on SD Card |
| Real-Time Clock | Yes |
| USB2 Port | Yes |
| Power | |
| Battery Type | 4 AA Batteries; NiMH, Li-Ion, or Alkaline |
| Battery Life (Operating) | 4-6 Hours on NiMH |
| Battery Life (Standby) | 120 Hours on NiMH |
| Enviromental | |
| Rating | IP-67, Submersible (with lens attached only) |
| Operating Temp. | -4°F to 140°F (-20°C to +60°C) |
| Storage Temp. | -4°F to 167°F (-40°C to +75°C) |
| Drop | 1m drop |
| Physical | |
| Weight (w/o lens) | 2.20 lbs |
| Size (L x W x H) | 280mm x 165mm x 67mm |
| Included Accessories | Hot Shoe Charging & Video Output Attachment, 4 Rechargeable AA NiMH Batteries, AC Power Adapter/Charger, Neck Lanyard, USB Cable, Video Output Cable, Hard Carrying Case, Product CD with Ops Manual, FLIR Video Player and End User Graphical User Interface (GUI) |
A version of this thermal imager is exportable! The 30hz version is for US citizens only, but export permits can be acquired for military and law enforcement. The 7.5Hz version is freely available! Sorry but any orders attempting to ship a 30Hz unit out of the US will be cancelled automatically.
