Kestrel 4500A Series Weather Meter with Applied Ballistics
Downloads:
manual

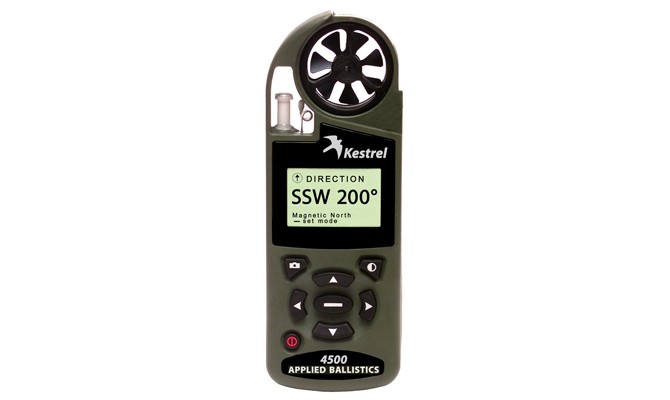

Kestrel 4500A Series Weather Meter with Applied Ballistics

Kestrel 4500A Series Weather Meter with Applied Ballistics

Model: 0845AOLV

Capable of monitoring a long list of environmental factors, this meter is famous for measuring wind direction, crosswind, headwind/tailwind. It features a built-in applied ballistics solver and digital compass.

Sorry! This product has been discontinued.


The Kestrel 4500A Series Weather Meter with Applied Ballistics has been discontinued, it has been replaced by the Kestrel Elite Weather Meter with Applied Ballistics



Description

The Kestrel 4500A Series applied ballistics meter combines sophisticated environmental sensing with long-range shooting ballistics information in one hand-held device. The built in Applied Ballistics software provides all of the following: "Litz" library of G1 and G7 referenced Ballistic Coefficients (BC's); custom drag curve modeling, helpful in engaging targets beyond the supersonic range of the bullet; and ballistic calibration (truing) feature that allows you to "train" the solver based on actual bullet impact.

The Applied Ballistics model has a different truing application from the Horus version with drop scale factor, it has bullet length as a standard gun input (used to calculate spin drift), offers ± angle input, has the ability to use G1 or G7 ballistic coefficients (BC) and comes pre-loaded with 7 custom drag profiles.

The Applied Ballistics® option features a calculator which provides accurate elevation and windage targeting solutions for long range rifle shooting. Shooters have everything they need to make a much more precise trajectory calculation in a compact and durable Kestrel meter design.

Available with Bluetooth® Data Transfer which is recommended for Full Gun and Bullet Profile Customization and Backup. Both real-time and logged data can be transferred wirelessly and automatically to a laptop or PDA, making a Kestrel Shooter's Weather Meter with Applied Ballistics and Bluetooth® technology the perfect tool for virtually any job that requires quick and reliable data.

All Kestrel instruments are made in the USA and are backed with a Five-Year Warranty.

Features

  • Select either G1 or G7 ballistic coefficient when calculating a trajectory
  • Get ballistic coefficient data for more than 225 long range bullets
  • "Train" the software to match your specific rifle based on observed impacts at long range
  • Measure up to 15 environmental parameters at your fingertips
  • Switches between mph, km/h, ft/min, m/s, knots and Beaufort
  • Exterior temperature, humidity, and pressure sensors
  • Multi-function 3-line display with backlight
  • Customize screens to display user-selected measurements
  • Minimum, maximum, and average values
  • Data hold function
  • Data logger (automatic and manual)
  • Manually store measurements with the press of a button
  • Customizable data storage - 2500 data points
  • Real-time clock
  • Graph and recall trends
  • Data charting
  • Data upload (with optional interface)
  • Five languages (English, French, Spanish, German, and Italian)
  • Waterproof and buoyant
  • Patented user-replaceable impeller
  • Flip-top impeller cover allows use of other functions while protecting the impeller
  • Protective cover with sure-grip overmolding
  • All instruments and accessories are completely assembled in the USA
  • Dimensions: 5.0 x 1.8 x 1.1 in / 12.7 x 4.5 x 2.8 cm
  • Weight: 3.6 oz / 102 g

Applications

  • Military snipers
  • Target shooters
